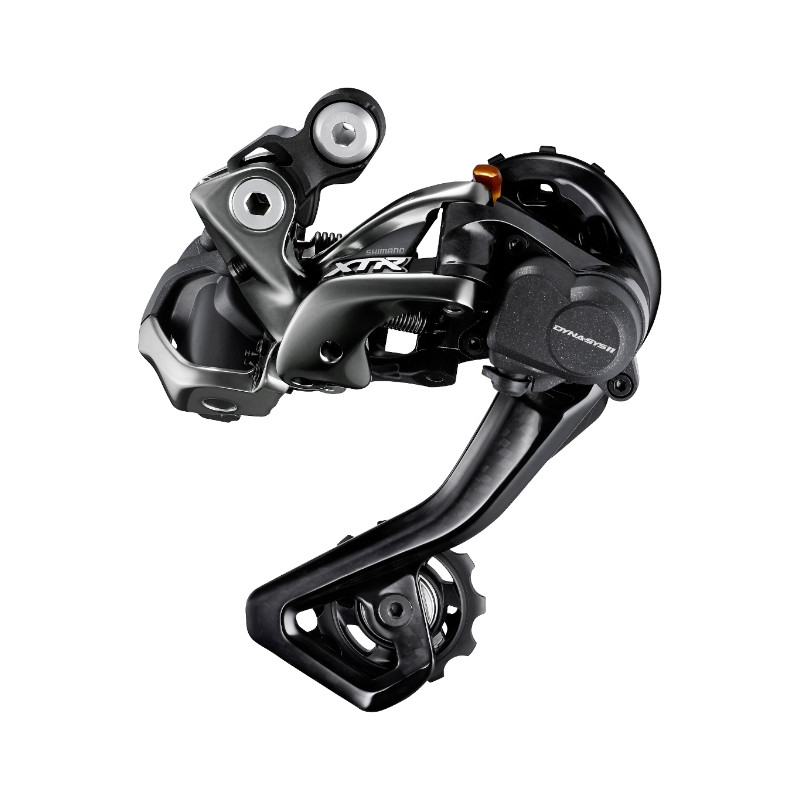

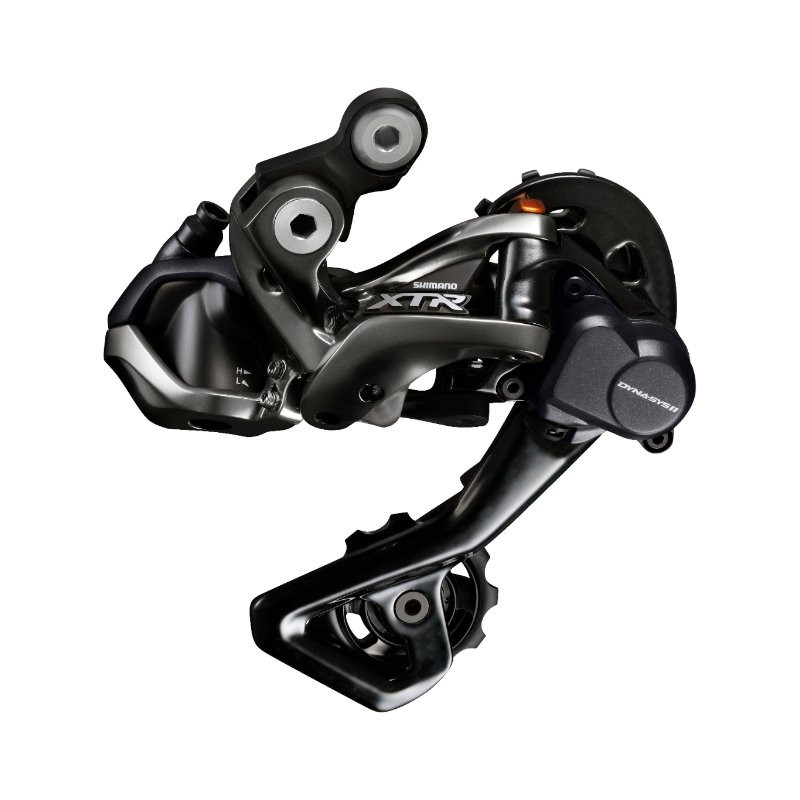

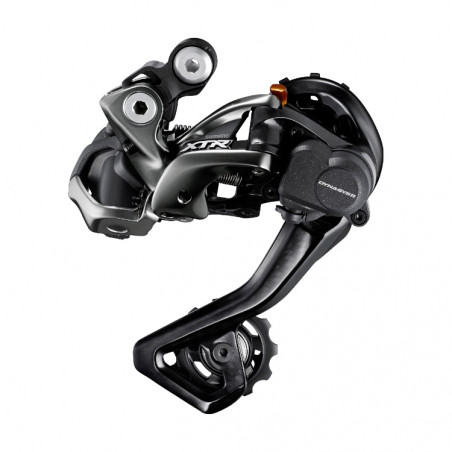

| MODEL NO | RD-M9050-GS |
|---|---|
| SERIES | XTR M9050 Series |
| Color | Series color |
| Average weight | 290 |
| Remarks | * w/o Bracket spec available. ** The DI2 system limits cross chain to prevent a chain from getting loose. |
|---|---|
| Rear speeds | 11 |
| Compatible chain | HG-X11 |
| Top-normal spring type|SHIMANO SHADOW RD | ✔ |
| Top-normal spring type|SHIMANO SHADOW RD+ | ✔ |
| Mount|Direct attachment (conventional) | ✔ |
| Mount|Direct mount | X* |
| Max. front difference | 10T |
| Total capacity | 35T** |
| Low sprocket|Max. | 42T (2x11-speed) 46T (1x11-speed) |
| Low sprocket|Min. | 40T |
| Top sprocket|Max. | 11T |
| Top sprocket|Min. | 11T |
| Fluoric coated link bushings | 4 |
| Pulley|Guide pulley bearing | Sealed Bearing |
| Pulley|Tension pulley bearing | Sealed Bearing |
| Pulley|Teeth | 11 |
| Pulley|Sunken type pulley screw | ✔ |
| B-axle|Hollow axle | ✔ |
| B-axle 2|Hollow axle | ✔ |
| SD50 port (pcs) | 1 |
| SD300 port (pcs) | 0 |
| SD50 connector (pcs) | 0 |
| SD300 connector (pcs) |
